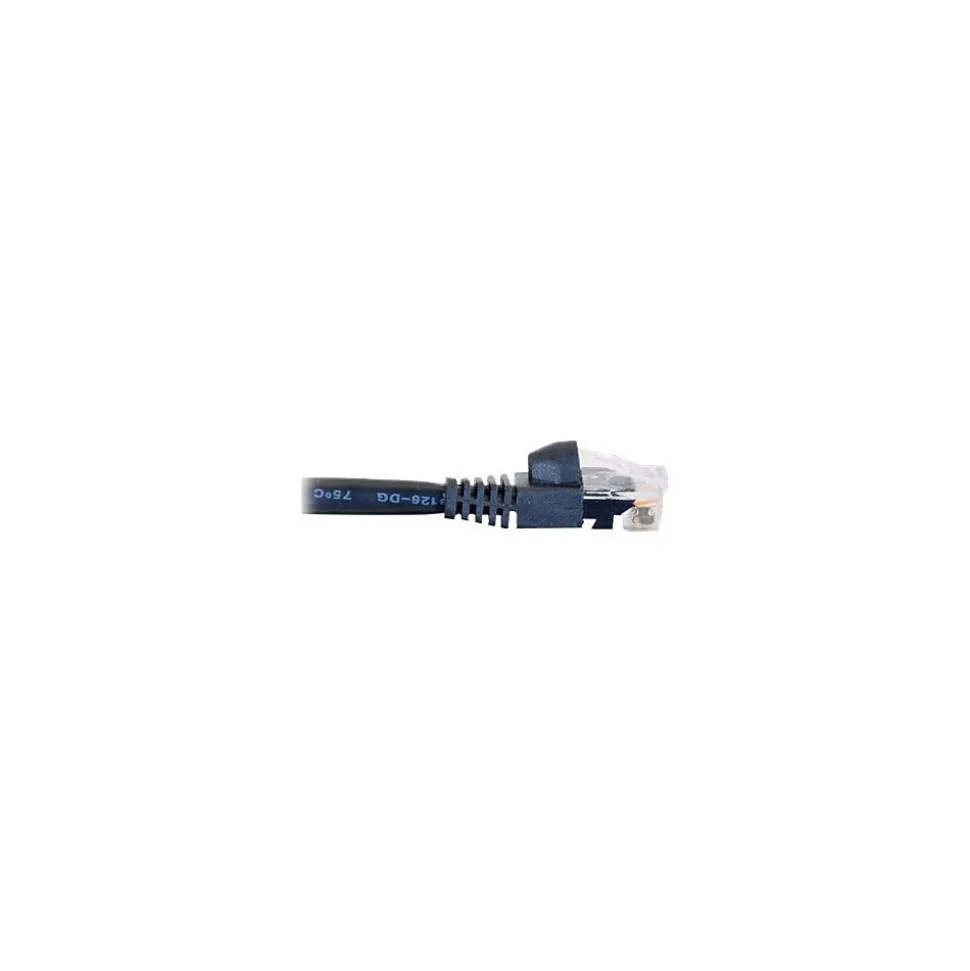

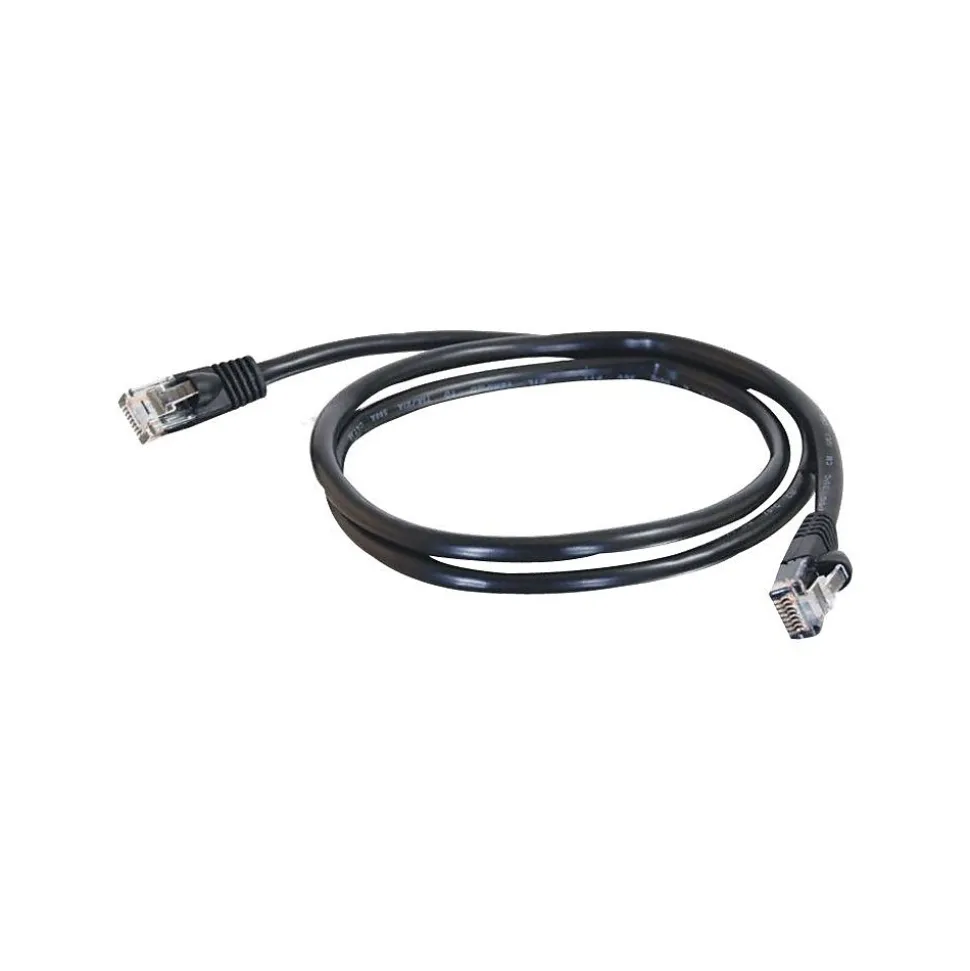

15ft Cat5e Snagless Unshielded (UTP) Network Patch Cable – Black
$6.99
The C2G 22011 15′ Cat5e 350MHz snagless unshielded black network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and FR-PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
- Dimensions: 15’L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in black color and features polycarbonate connector, FR-PVC jacket, molded PVC hood, HDPE insulation and copper alloy contact
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion
- 0.55 mm Nominal thickness, 5.3 +/- 0.15 mm O.D., 0.95 +/- 0.02 mm Dia. conductor
- DC resistance: 89 Ohm/km maximum, Insulation resistance: 100 Ohm/km minimum, Dielectric strength: 500 MV/m
- Frequency: Up to 350 MHz
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.35 lbs.
- Comes with lifetime warranty
- Category 5e for Network Device
| Attribute name | Attribute value |
|---|---|
| Warranty Information | Power |
| End 2 Connector Type | PVC |
| Device Type | 180 |
| Conductor Material | Yes |
| Cable Length (ft) | Gold-Plated |
| True Color Numerical Value of AWG rating of cable up to 40. | 16 |
| Series or Collection | RJ45 |
| Connector Gender Does the product contain an ethernet port or connector | Yes |
| Color Family The primary color of the product | Black |
